Faucet, 12" Swing Nozzle

ITEM DESCRIPTION

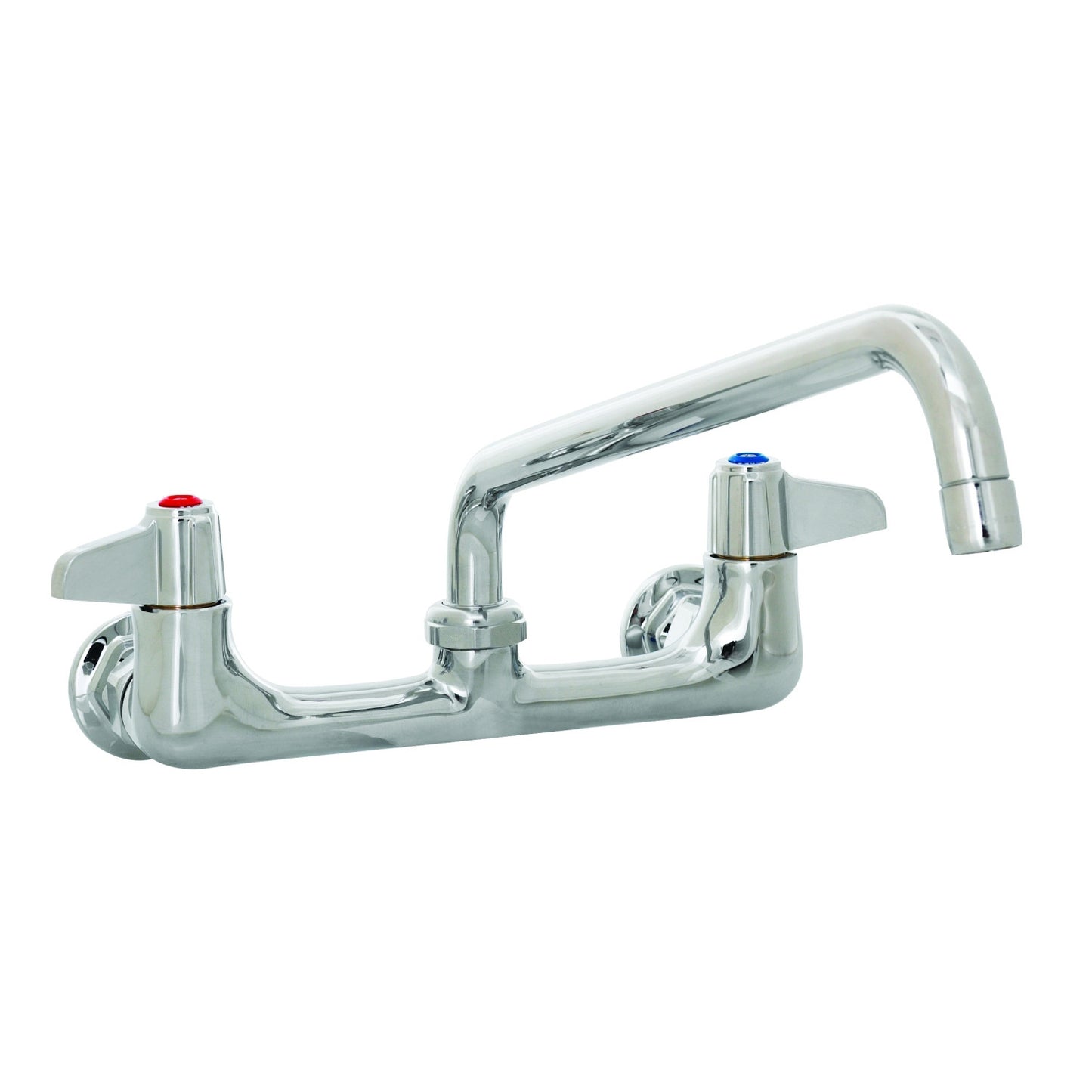

T77-5F-8WLX12 Wall Mount, 8" Centers, 12" Swing Nozzle

8" wall mount mixing faucet with polished chrome plated brass body, 12" equip swing nozzle, ceramic cartridges, equip lever handles, and 1/2" NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
  • Body: 8 in Centers
  • Body Mount: Wall
  • Cartridge-Spindle: Ceramic
  • Handle: Lever
  • Inlet: 1/2 in NPT Female
  • Inlet: Adjustable Centers
  • Nozzle: 12 in
  • Nozzle: Nozzle
  • Nozzle: Swivel
  • Nozzle Flow: 5.2 GPM (19.68 L/min)
  • Nozzle Outlet Type: Laminar Flow Device
  • Pressure Max: Pressure Max: 125 psi (8.62 bar)
  • Pressure Min: Pressure Min: 20 psi (1.38 bar)
  • Temperature Max: Temperature Max: 140 F (60℃)
  • Temperature Min: Temperature Min: 40 F (4.44℃)
