Conveyor Dishwasher

MODEL	DESCRIPTION

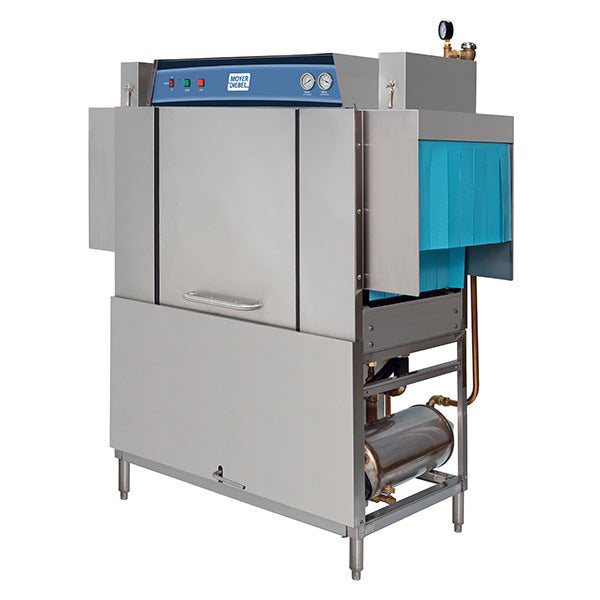

MD44	Conveyor Dishwasher

Moyer Diebel Dishwasher, conveyor type, high temperature, 44" single tank, (219) racks/hour capacity, single point utility connections, standard clearance accommodates 18" x 26" sheet pans, chemical connections, vent fan interlock, table limit switch connection, energy sentinel, extended vent cowls & dampers, with extra curtain (set), built in diagnostics, anti-jam conveyor drive system, includes (1) flat & (1) peg rack, NSF, UL, ENERGY STAR®.

• Chemical connections
• Built-in diagnostics
• Energy Sentinel
• Vent cowls
• 219 racks per hour
• 130 gallons per hour/.59 gallons per rack (199 imp. gal. per hour/.55 imp. gal. per rack)
• Anti-jam conveyor system
• Single point electrical connection
• Single point water connection
• 2 Hp wash pump
• Exhaust fan control
• Vent fan interlock connection
• Table limit switch connection
• Field conversion possible! Components can be reversed to change direction of operation in-field (by others)
• Convenient top mounted controls
• Drain is a manual ball valve
